    日成密封无卤线槽 SDRHF

    特点:全密封无孔,日成线槽


    产品材质:采用无卤素硬质料制成,环保无污染,不含铅等有毒物。
    产品认证:原料UL.欧洲CE,欧洲环保RoHS,REACH。
    防火等级:UL94V-0,低烟无卤,遇火不燃烧,防火性及绝缘性特佳。

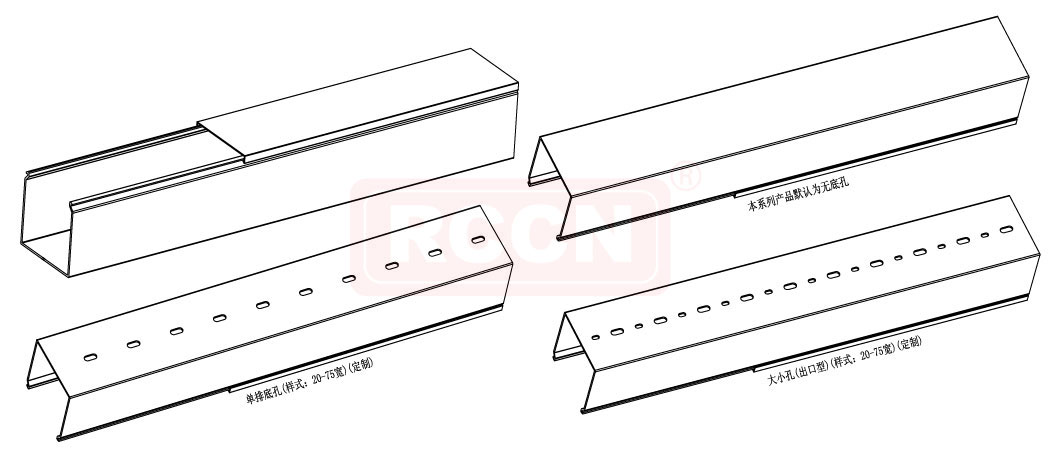

    产品构造:由槽底及槽盖组成。
    颜 色:灰色.乳白色.蓝色
    工作温度 :静态-40°C持续高温至110°C。
    *无卤原料采用PCABS制成。
    产品用途:半导体制造,造船,核能发电厂,石油平台,电梯,机车及地铁,风能发电平台,温度及环境恶劣等行业。
    更多选择:可按需求生产定制其它长度.
    无卤线槽以槽盖槽底组合后外部宽高为准
    表格如没有你所需要的规格,我司可以开发设计供应!
    推荐:灰色为常规库存产品,其它颜色有起订量要求。*交期待确认。
    标准长度:2米/支

    产品规格

    型号Item No.

    宽*高

    W*H

    电线容量

    以2.0平方计算

    装箱/M

    灰色Gray 白色White 蓝色Blue 黑色Black
    SDR1616/HF SDR1616W/HF SDR1616E/HF SDR1616B/HF 16*16 3~10pcs 300M
    *SDR2516/HF SDR2516W/HF SDR2516E/HF SDR2516B/HF 25*16 5~15pcs 240M
    *SDR4016/HF SDR4016W/HF SDR4016E/HF SDR4016B/HF 40*16 15~30pcs 200M
    SDR1520/HF SDR1520W/HF SDR1520E/HF SDR1520B/HF 15*20 8~12pcs 260M
    SDR2020/HF SDR2020W/HF SDR2020E/HF SDR2020B/HF 20*20 10~20pcs 240M
    SDR4020/HF SDR4020W/HF SDR4020E/HF SDR4020B/HF 40*20 20-30pcs 140M
    SDR1525/HF SDR1525W/HF SDR1525E/HF SDR1525B/HF 15*25 5~15pcs 260M
    SDR2025/HF SDR2025W/HF SDR2025E/HF SDR2025B/HF 20*25 5~15pcs 200M
    SDR2525/HF SDR2525W/HF SDR2525E/HF SDR2525B/HF 25*25 10~25pcs 200M
    SDR3025/HF SDR3025W/HF SDR3025E/HF SDR3025B/HF 30*25 12~28pcs 160M
    *SDR4025/HF SDR4025W/HF SDR4025E/HF SDR4025B/HF 40*25 20~25pcs 120M
    *SDR5025/HF SDR5025W/HF SDR5025E/HF SDR5025B/HF 50*25 20~25pcs 100M
    SDR1530/HF SDR1530W/HF SDR1530E/HF SDR1530B/HF 15*30 8~15pcs 200M
    SDR2030/HF SDR2030W/HF SDR2030E/HF SDR2030B/HF 20*30 25~35pcs 180M
    SDR2530/HF SDR2530W/HF SDR2530E/HF SDR2530B/HF 25*30 25~35pcs 160M
    SDR3030/HF SDR3030W/HF SDR3030E/HF SDR3030B/HF 30*30 25~35pcs 140M
    SDR4030/HF SDR4030W/HF SDR4030E/HF SDR4030B/HF 40*30 30~40pcs 100M
    SDR5030/HF GDR5030W/HF GDR5030E/HF GDR5030B/HF 50*30 40-50pcs 80M
    SDR6030/HF GDR6030W/HF GDR6030E/HF GDR6030B/HF 60*30 50-60pcs 60M
    SDR2233/HF SDR2233W/HF SDR2233E/HF SDR2233B/HF 22*33 15~25pcs 180M
    SDR3333/HF SDR3333W/HF SDR3333E/HF SDR3333B/HF 33*33 30~40pcs 160M
    SDR2035/HF SDR2035W/HF SDR2035E/HF SDR2035B/HF 20*35 30~40pcs 100M
    SDR3535/HF SDR3535W/HF SDR3535E/HF SDR3535B/HF 35*35 35~45pcs 112M
    SDR5035/HF SDR5035W/HF SDR5035E/HF SDR5035B/HF 50*35 40~60pcs 88M
    *SDR2040/HF SDR2040W/HF SDR2040E/HF SDR2040B/HF 20*40 20~25pcs 110M
    SDR2540/HF SDR2540W/HF SDR2540E/HF SDR2540B/HF 25*40 20~25pcs 112M
    SDR3540/HF SDR3540W/HF SDR3540E/HF SDR3540B/HF 35*40 50-60pcs 100M
    SDR4040/HF SDR4040W/HF SDR4040E/HF SDR4040B/HF 40*40 60~70pcs 100M
    SDR6040/HF SDR6040W/HF SDR6040E/HF SDR6040B/HF 60*40 100~115pcs 68M
    SDR8040/HF SDR8040W/HF SDR8040E/HF SDR8040B/HF 80*40 120~135pcs 48M
    SDR10040/HF SDR10040W/HF SDR10040E/HF SDR10040B/HF 100*40 120~135pcs 32M
    SDR12040/HF SDR12040W/HF SDR12040E/HF SDR12040B/HF 120*40 140-165pcs
    /
    SDR2545/HF SDR2545W/HF SDR2545E/HF SDR2545B/HF 25*45 20~25pcs

    104M

    SDR3345/HF SDR3345W/HF SDR3345E/HF SDR3345B/HF 33*45 40~55pcs 108M
    SDR4545/HF SDR4545W/HF SDR4545E/HF SDR4545B/HF 45*45 60~70pcs 72M
    SDR6545/HF SDR6545W/HF SDR6545E/HF SDR6545B/HF 65*45 110~120pcs 56M
    SDR2050/HF SDR2050W/HF SDR2050E/HF SDR2050B/HF 20*50 20~30pcs 100M
    SDR2550/HF SDR2550W/HF SDR2550E/HF SDR2550B/HF 25*50 20~30pcs 100M
    SDR3050/HF SDR3050W/HF SDR3050E/HF SDR3050B/HF 30*50 25~40pcs 84M
    SDR3550/HF SDR3550W/HF SDR3550E/HF SDR3550B/HF 35*50 40~60pcs 80M
    SDR4050/HF SDR4050W/HF SDR4050E/HF SDR4050B/HF 40*50 60~70pcs 68M
    SDR4550/HF SDR4550W/HF SDR4550E/HF SDR4550B/HF 45*50 70~80pcs 60M
    SDR5050/HF SDR5050W/HF SDR5050E/HF SDR5050B/HF 50*50 80~90pcs 60M
    SDR5550/HF SDR5550W/HF SDR5550E/HF SDR5550B/HF 55*50 85~95pcs 50M
    SDR6050/HF SDR6050W/HF SDR6050E/HF SDR6050B/HF 60*50 100~120pcs 48M
    SDR7550/HF SDR7550W/HF SDR7550E/HF SDR7550B/HF 75*50 140~160pcs 40M
    SDR8050/HF SDR8050W/HF SDR8050E/HF SDR8050B/HF 80*50 160~180pcs 40M
    SDR10050/HF SDR10050W/HF SDR10050E/HF SDR10050B/HF 100*50 200~250pcs 26M
    SDR12555/HF SDR12555W/HF SDR12555E/HF SDR12555B/HF 125*55 220~270pcs 20M
    SDR2060/HF SDR2060W/HF SDR2060E/HF SDR2060B/HF 20*60 5~45pcs 100M
    SDR2560/HF SDR2560W/HF SDR2560E/HF SDR2560B/HF 25*60 40~50pcs 100M
    SDR3060/HF SDR3060W/HF SDR3060E/HF SDR3060B/HF 30*60 60~80pcs 80M
    *SDR3560/HF SDR3560W/HF SDR3560E/HF SDR3560B/HF 35*60 65~85pcs 70M
    SDR4060/HF SDR4060W/HF SDR4060E/HF SDR4060B/HF 40*60 100~115pcs 60M
    SDR4560/HF SDR4560W/HF SDR4560E/HF SDR4560B/HF 45*60 110~125pcs 30M
    SDR5060/HF SDR5060W/HF SDR5060E/HF SDR5060B/HF 50*60 120~135pcs 60M
    SDR6060/HF SDR6060W/HF SDR6060E/HF SDR6060B/HF 60*60 120~135pcs 48M
    SDR8060/HF SDR8060W/HF SDR8060E/HF SDR8060B/HF 80*60 180~210pcs 36M
    SDR10060/HF SDR10060W/HF SDR10060E/HF SDR10060B/HF 100*60 240~290pcs 28M
    SDR11060/HF SDR11060W/HF SDR11060E/HF SDR11060B/HF 110*60 250~300pcs 48M
    *SDR12060/HF SDR12060W/HF SDR12060E/HF SDR12060B/HF 120*60 260~320pcs 48M
    SDE15060/HF SDE15060W/HF SDE15060E/HF SDE15060B/HF 150*60 300-360pcs 16M
    SDR2565/HF SDR2565W/HF SDR2565E/HF SDR2565B/HF 25*65 40~50pcs 88M
    SDR3365/HF SDR3365W/HF SDR3365E/HF SDR3365B/HF 33*65 40~70pcs 80M
    SDR4565/HF SDR4565W/HF SDR4565E/HF SDR4565B/HF 45*65 110~120pcs 52M
    SDR6565/HF SDR6565W/HF SDR6565E/HF SDR6565B/HF 65*65 180~200pcs 44M
    SDR7265/HF SDR7265W/HF SDR7265E/HF SDR7265B/HF 72*65 190~210pcs 40M
    SDR2575/HF SDR2575W/HF SDR2575E/HF SDR2575B/HF 25*75 140-170pcs
    /
    SDR3575/HF SDR3575W/HF SDR3575E/HF SDR3575B/HF 35*75 160-190pcs
    /
    SDR5075/HF SDR5075W/HF SDR5075E/HF SDR5075B/HF 50*75 180~210pcs 32M
    SDR7575/HF SDR7575W/HF SDR7575E/HF SDR7575B/HF 75*75 200~240pcs 24M
    SDR10075/HF SDR10075W/HF SDR10075E/HF SDR10075B/HF 100*75 220~260pcs 24M
    SDR2580/HF SDR2580W/HF SDR2580E/HF SDR2580B/HF 25*80 100~120pcs 72M
    SDR3080/HF SDR3080W/HF SDR3080E/HF SDR3080B/HF 30*80 110~125pcs 56M
    SDR3580/HF SDR3580W/HF SDR3580E/HF SDR3580B/HF 35*80 110~130pcs 56M
    SDR4080/HF SDR4080W/HF SDR4080E/HF SDR4080B/HF 40*80 140~160pcs 48M
    SDR4580/HF SDR4580W/HF SDR4580E/HF SDR4580B/HF 45*80 140~160pcs 40M
    SDR5080/HF SDR5080W/HF SDR5080E/HF SDR5080B/HF 50*80 160~180pcs 40M
    SDR5580/HF SDR5580W/HF SDR5580E/HF SDR5580B/HF 55*80 160~180pcs 32M
    SDR6080/HF SDR6080W/HF SDR6080E/HF SDR6080B/HF 60*80 180~210pcs 32M
    SDR8080/HF SDR8080W/HF SDR8080E/HF SDR8080B/HF 80*80 240~290pcs 24M
    SDR10080/HF SDR10080W/HF SDR10080E/HF SDR10080B/HF 100*80 260~350pcs 24M
    SDR12080/HF SDR12080W/HF SDR12080E/HF SDR12080B/HF 120*80 280~380pcs 16M
    SDR14080/HF SDR14080W/HF SDR14080E/HF SDR14080B/HF 140*80 350~450pcs 16M
    SDR25100/HF SDR25100W/HF SDR25100E/HF SDR25100B/HF 25*100 110~160pcs 60M
    SDR33100/HF SDR33100W/HF SDR33100E/HF SDR33100B/HF 33*100 130~165pcs 44M
    SDR40100/HF SDR40100W/HF SDR40100E/HF SDR40100B/HF 40*100 130~175pcs 40M
    SDR50100/HF SDR50100W/HF SDR50100E/HF SDR50100B/HF 50*100 220~250pcs 40M
    SDR60100/HF SDR60100W/HF SDR60100E/HF SDR60100B/HF 60*100 240~290pcs 32M
    SDR70100/HF SDR70100W/HF SDR70100E/HF SDR70100B/HF 70*100 240~290pcs 32M
    SDR75100/HF SDR75100W/HF SDR75100E/HF SDR75100B/HF 75*100 260~350pcs 24M
    SDR80100/HF SDR80100W/HF SDR80100E/HF SDR80100B/HF 80*100 260~350pcs 24M
    SDR100100/HF SDR100100W/HF SDR100100E/HF SDR100100B/HF 100*100 300~400pcs 24M
    SDR120100/HF SDR120100W/HF SDR120100E/HF SDR120100B/HF 120*100 350~450pcs 16M
    SDR150100/HF SDR150100W/HF SDR150100E/HF SDR150100B/HF 150*100 400~650pcs 16M
    SDR100130/HF SDR100130W/HF SDR100130E/HF SDR100130B/HF 100*130 350~450pcs 16M
    *SDR200100/HF SDR200100W/HF SDR200100E/HF SDR200100B/HF 200*100 600~800pcs 12M
    *SDR200150/HF *SDR200150W/HF *SDR200150E/HF *SDR200150B/HF 200*150 900~1200pcs 10M
