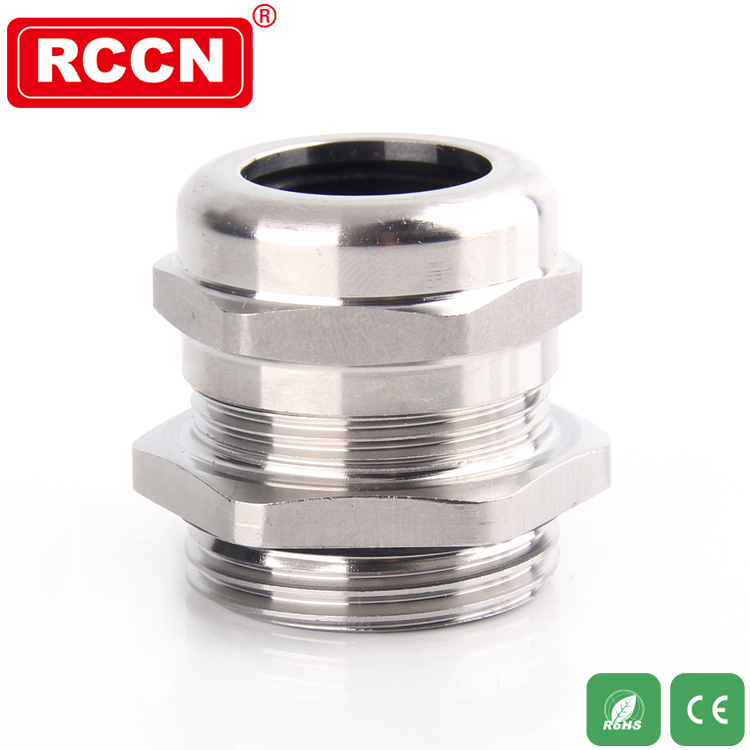

材 料：外部金属为不锈钢304 ,内部芯套为尼龙，密封件材料为改性橡胶
防护等级：在规定的卡口范围之内，并使用〇形密封圈旋紧迫紧头，防护等级可以达到IP66
产品特性：特殊夹紧爪与夹紧圈凹凸相扣，配合迫紧头，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐酸碱、酒精、油、脂及一般溶剂。
工作温度：-40℃到100℃短时间可以达到120°C
应用场合：海上作业设备，矿井机械设备，化工设备等工作环境恶劣的场合。电缆防水接头是电缆的配套产品，接头可接入设备箱体上，也可以根据选用螺纹接入进出口为内螺纹的电动设备上。
防爆等级：Ex d IIC Gb/Ex e IIGB
| 型号 Item No. |
螺纹规格 Thread Dimension |
卡口范围 Clamping range mm |
螺纹外径 AG mm |
螺纹长度 GL mm |
H mm |
扳手尺寸 Wrench size mm |
包装单位 Std.Pkg PCS |
| SSM-EX-G G管螺纹 G Thread | |||||||
| SSM-EX-G1/4 | G1/4" | 3-6.5 | 13.11 | 7 | 19 | 14 | 50 |
| SSM-EX-G3/8 | G3/8" | 4-8 | 16.66 | 8 | 21 | 17/20 | 50 |
| SSM-EX-G1/2-H | G1/2" | 5-10 | 20.99 | 8 | 23 | 20/24 | 50 |
| SSM-EX-G1/2 | G1/2" | 6-12 | 20.99 | 8 | 23.5 | 22/24 | 50 |
| SSM-EX-G1/2-D | G1/2" | 8-14 | 20.99 | 8 | 23.5 | 24 | 50 |
| SSM-EX-G3/4-TH | G3/4" | 6-12 | 26.44 | 8 | 23.5 | 22/30 | 50 |
| SSM-EX-G3/4-H | G3/4" | 8-14 | 26.44 | 8 | 23.5 | 24/30 | 50 |
| SSM-EX-G3/4 | G3/4" | 13-18 | 26.44 | 8 | 26 | 30 | 25 |
| SSM-EX-G1 | G1" | 18-25 | 33.24 | 9 | 33 | 40 | 20 |
| SSM-EX-G1 1/4 | G1 1/4" | 22-32 | 41.91 | 10 | 36 | 50 | 10 |
| SSM-EX-G1 1/2 | GI 1/2" | 30-38 | 47.8 | 10 | 40 | 55/58 | 10 |
| SSM-EX-G2 | G2" | 37-44 | 59.61 | 11 | 41 | 65 | 5 |
| SSM-EX-NPT NPT美制螺纹 NPT Thread | |||||||
| SSM-EX-NPT3/8 | NPT 3/8" | 4~8 | 17.055 | 11 | 21 | 17/20 | 50 |
| SSM-EX-NPT1/2-H | NPT 1/2 " | 5~10 | 21.223 | 13 | 23 | 20/24 | 50 |
| SSM-EX-NPT1/2 | NPT 1/2" | 6~12 | 21.223 | 13 | 23.5 | 22/24 | 50 |
| SSM-EX-NPT1/2-D | NPT 1/2 " | 8~14 | 21.223 | 13 | 23.5 | 24 | 50 |
| SSM-EX-NPT3/4-TH | NPT 3/4" | 6~12 | 26.568 | 13 | 23.5 | 22/30 | 50 |
| SSM-EX-NPT3/4-H | NPT 3/4" | 8~14 | 26.568 | 13 | 23.5 | 24/30 | 50 |
| SSM-EX-NPT3/4 | NPT 3/4" | 13-18 | 26.568 | 13 | 26 | 30 | 25 |
| SSM-EX-NPT1 | NPT 1" | 18-25 | 33.227 | 16 | 33 | 40 | 20 |
| SSM-EX-NPT1 1/4 | NPT1 1/4" | 22-32 | 41.984 | 16 | 36 | 50 | 10 |
| SSM-EX-NPT1 1/2 | NPT1 1/2" | 30-38 | 48.053 | 18 | 40 | 55/58 | 10 |
| SSM-EX-NPT2 | NPT 2" | 37-44 | 60.091 | 18 | 41 | 65 | 5 |
| SSM-EX-NPT3 | NPT 3" | 55-61 | 88.608 | 18 | 45 | 94 | 5 |
