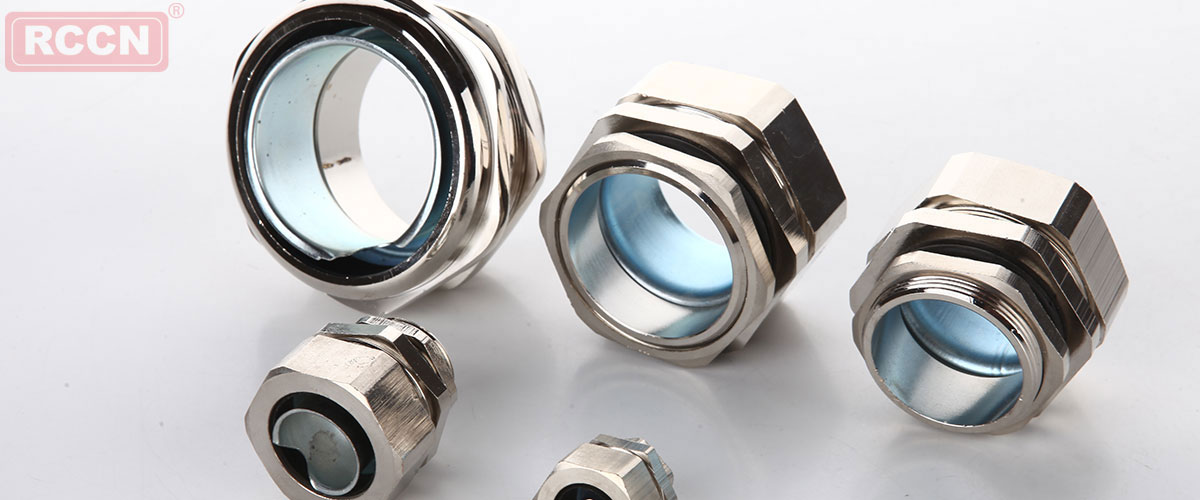

铜制软管接头,金属软管接头

螺牙规格:管螺纹G/PF牙,公制螺纹Metric,德制螺纹 PG
产品材质:A.C.F部位优质加厚型黄铜（镀镍）制成.B.E丁腈橡胶(NBR)制成.D铁皮制成.
产品认证:欧洲CE,欧洲环保RoHS / 颜色:黄色 / 防护等级:IP54
工作温度:-40°C至100°C,瞬间可耐热达120°C.
产品特性: 1.加厚型黄铜（镀镍）制成,外型美观,结构紧密,强度高.
2.软管护套设计与软管相扣接紧之设计,配合迫紧头装配省时便利,抗拉力特强,
3.可防水、防尘、抗盐、耐酸碱、酒精、油、脂及一般溶剂.
4.除以下标准规格外,可另按需求任意变动大小及螺纹标准.
备注:成品均配带螺母A及防水垫片B可定制特殊规格不同的螺纹和配套和管

型号 Item No.	螺牙标准 Thread G/M/PG	配套日成金属软管MCR			螺纹外径 Thread O.D. D1	螺纹长度 Thread Length L1
型号 Item No.	螺牙标准 Thread G/M/PG	对应型号	公制	英制	螺纹外径 Thread O.D. D1	螺纹长度 Thread Length L1
公制螺纹 TNBG-M
TNBG-01M	M14*1.5	MCR-01	6	3/16"	M14*1.5	8
TNBG-02M	M14*1.5	MCR-02	8	5/16"	M14*1.5	8
TNBG-03M	M16*1.5	MCR-03	10	1/4	M16*1.5	8
TNBG-04M	M16*1.5	MCR-04	13	3/8"	M16*1.5	8
TNBG-05M	M20*1.5	MCR-05	16	1/2"	M20*1.5	11
TNBG-06M	M25*1.5	MCR-06	20	3/4"	M25*1.5	14
TNBG-08M	M32*1.5	MCR-08	25	1"	M32*1.5	15
TNBG-10M	M40*1.5	MCR-10	32	11/4"	M40*1.5	15
TNBG-12M	M50*1.5	MCR-12	38	1 1/2	M50*1.5	16
TNBG-16M	M63*1.5	MCR-16	51	2"	M63*1.5	18
管螺纹 TNBG-G
TNBG-01G	G1/4"	MCR-01	6	3/16"	13.2	8
TNBG-02G	G1/4"	MCR-02	8	5/16"	13.2	8
TNBG-03G	G3/8"	MCR-03	10	1/4"	16.5	8
TNBG-04G	G3/8"	MCR-04	13	3/8"	16.5	8
TNBG-05G	G1/2"	MCR-05	16	1/2"	21.3	11
TNBG-06G	G3/4"	MCR-06	20	3/4"	26.6	14
TNBG-08G	G1"	MCR-08	25	1"	33.4	15
TNBG-10G	G1 1/4"	MCR-10	32	11/4"	42.1	15
TNBG-12G	G1 1/2"	MCR-12	38	11/2"	47.8	16
TNBG-16G	G2"	MCR-16	51	2	59.6	18
德制螺纹 TNBG-PG
TNBG-03P	PG9	MCR-03	10	1/4"	15.2	8
TNBG-04P	PG11	MCR-04	13	3/8"	18.6	9
TNBG-05P	PG13.5	MCR-05	16	1/2"	20.4	11
TNBG-06P	PG21	MCR-06	20	3/4"	28.3	14
TNBG-08P	PG29	MCR-08	25	1"	37.0	15
TNBG-10P	PG29	MCR-10	32	1 1/4"	37.0	15
TNBG-12P	PG36	MCR-12	38	11/2"	47.0	16
TNBG-16P	PG48	MCR-16	51	2"	59.3	18
管螺纹 TNBG-NPT
TNBG-01N	NPT1/4"	MCR-01	6	3/16"	13.2	8
TNBG-02N	NPT1/4"	MCR-02	8	5/16"	13.2	8
TNBG-03N	NPT3/8"	MCR-03	10	1/4"	16.5	8
TNBG-04N	NPT3/8"	MCR-04	13	3/8"	16.5	8
TNBG-05N	NPT1/2"	MCR-05	16	1/2"	21.3	11
TNBG-06N	NPT3/4"	MCR-06	20	3/4"	26.6	14
TNBG-08N	NPT1"	MCR-08	25	1"	33.4	15
TNBG-10N	NPT1 1/4"	MCR-10	32	11/4"	42.1	15
TNBG-12N	NPT1 1/2"	MCR-12	38	11/2"	47.8	16
TNBG-16N	NPT2"	MCR-16	51	2	59.6	18
