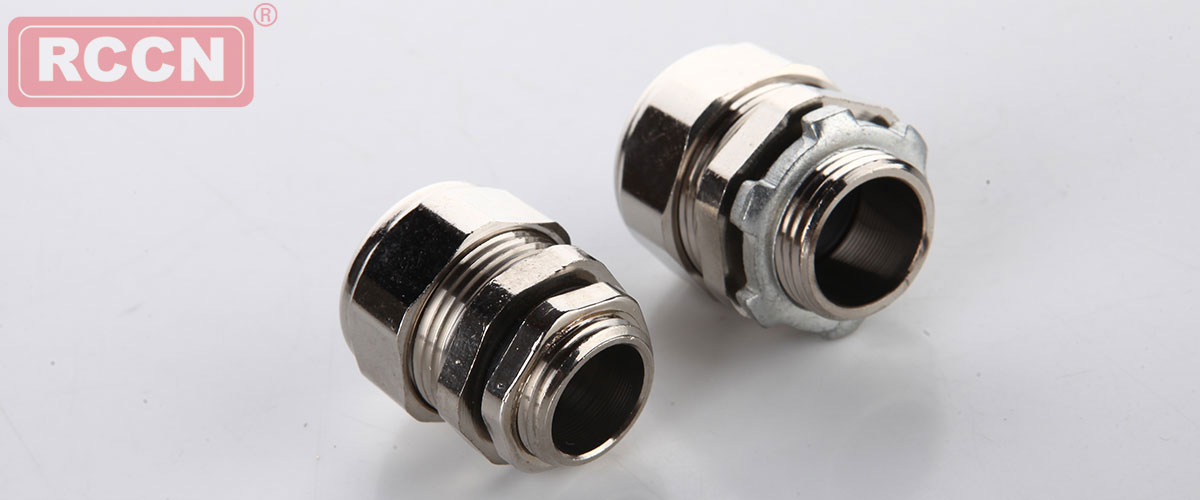

金属接头 ,快速接头

螺牙规格:公制螺牙(Metric).
产品材质:A.C.F部位均采用黄铜镀镍制成.B.D采用硅橡胶制成。
产品认证:欧洲CE,ROHS.
防护等级:在规定的卡口范围内,并使用O形密封圈旋紧迫紧头,达到IP68。
产品特性:配套锁紧式电缆接头,防电线松动,内锁扣和本体特殊设计,装卸
只需拨插无需工具,大大缩短了安装时间. 夹紧电缆范围大,抗拉
力特强,可防水、防尘、抗盐、耐酸碱、酒精、油、脂及一般溶剂.

型号 Item No .	螺纹规格 Thread	最大电缆Cable Range Φ	对应日成软管型号 Suit to RCCN conduit item no BG	螺纹外径 Thread O.D. D1	机板口径 Panel Mounting Hole	螺纹长度 Thread Length L1
公制螺牙/Metric thread BGF-M
BGF-M12(BG07)	M12*1.5	5	BG-07	12	12-12.3	6
BGF-M12(BG10)	M12*1.5	5	BG-10	12	12-12.3	6
BGF-M16(BG07)	M16*1.5	8	BG-07	16	16-16.3	7
BGF-M16(BG10)	M16*1.5	8	BG-10	16	16-16.3	7
BGF-M18(BG10)	M18*1.5	8	BG-10	18	18-18.3	8
BGF-M18(BG12)	M18*1.5	10	BG-12	18	18-18.3	8
BGF-M18(BG15)	M18*1.5	13	BG-15	18	18-18.3	8
BGF-M20(BG10)	M20*1.5	8	BG-10	20	20-20.3	8
BGF-M20(BG12)	M20*1.5	10	BG-12	20	20-20.3	8
BGF-M20(BG15)	M20*1.5	13	BG-15	20	20-20.3	8
BGF-M20(BG17)	M20*1.5	15	BG-17	20	20-20.3	8
BGF-M22(BG17)	M22*1.5	15	BG-17	22	22-22.3	9
BGF-M24(BG17)	M24*1.5	15	BG-17	24	24-24.3	10
BGF-M25(BG17)	M25*1.5	15	BG-17	25	25-25.4	10
BGF-M25(BG23)	M25*1.5	21	BG-23	25	25-25.4	10
BGF-M27(BG23)	M27*1.5	21	BG-23	27	27-27.4	11
BGF-M30(BG23)	M30*1.5	21	BG-23	30	30-30.4	11
BGF-M32(BG23)	M32*1.5	21	BG-23	32	32-32.4	11
BGF-M32(BG29)	M32*1.5	25	BG-29	32	32-32.4	11
BGF-M33(BG29)	M33*1.5	25	BG-29	33	33-33.4	11
BGF-M36(BG29)	M36*1.5	25	BG-29	36	36-36.4	11
BGF-M40(BG29)	M40*1.5	25	BG-29	40	40-40.4	12
BGF-M40(BG36)	M40*1.5	33	BG-36	40	40-40.4	12
BGF-M48(BG36)	M48*2.0	33	BG-36	48	48-48.4	12
BGF-M50(BG36)	M50*1.5	33	BG-36	50	50-50.4	13
BGF-M50(BG48)	M50*1.5	45	BG-48	50	50-50.4	13
BGF-M56(BG48)	M56*2.0	45	BG-48	56	56-56.4	13
BGF-M63(BG48)	M63*1.5	45	BG-48	63	63-63.4	14

型号 Item No .	螺纹规格 Thread	适应电缆 Cable Range	对应日成软管型号 BG	螺纹外径Thread O.D. D1	机板口径Panle Mounting Hole	螺纹长度 Thread Length L1
德制螺牙BGF-P
BGF-PG7(BG07)	PG-7	3-6	BG-07	12.5	12.5-12.8	6
BGF-PG9(BG07)	PG-9	4-8	BG-07	15.2	15.2-15.8	7
BGF-PG9(BG10)	PG-9	4-8	BG-10	15.2	15.2-15.8	7
BGF-PG11(BG10)	PG-11	6-10	BG-10	18.6	18.6-18.9	8
BGF-PG11(BG12)	PG-11	6-10	BG-12	18.6	18.6-18.9	8
BGF-PG13.5(BG12)	PG-13.5	8-12	BG-12	20.4	20.4-20.7	8
BGF-PG13.5(BG15)	PG-13.5	8-12	BG-15	20.4	20.4-20.7	8
BGF-PG13.5(BG17)	PG-13.5	8-12	BG-17	20.4	20.4-20.7	8
BGF-PG16(BG17)	PG-16	10-14	BG-17	22.5	22.5-22.8	9
BGF-PG21(BG23)	PG-21	13-18	BG-23	28.3	28.3-28.7	11
BGF-PG29(BG29)	PG-29	18-25	BG-29	37.0	37.0-37.4	11
BGF-PG36(BG36)	PG-36	26-32	BG-36	47.0	47.0-47.4	13
BGF-PG48(BG48)	PG-48	37-44	BG-48	59.3	59.3-59.7	14
管螺牙BGF-G
BGF-G1/4(BG07)	G1/4''	3-6	BG-07	13.2	13.2-13.4	6
BGF-G3/8(BG10)	G3/8''	4-8	BG-10	16.5	16.5-17.1	7
BGF-G1/2(BG12)	G1/2''	8-12	BG-12	21.3	21.0-21.3	8
BGF-G1/2(BG15)	G1/2''	8-12	BG-15	21.3	21.0-21.3	8
BGF-G1/2(BG17)	G1/2''	8-12	BG-17	21.3	21.0-21.3	8
BGF-G3/4(BG17)	G3/4''	13-18	BG-17	26.6	26.5-26.6	11
BGF-G1(BG23)	G1''	15-22	BG-23	33.4	33.2-33.4	11
BGF-G1-1/4(BG29)	G1 1/4''	22-28	BG-29	42.1	41.9-42.1	12
BGF-G1-1/2(BG36)	G1 1/2''	26-32	BG-36	47.8	47.8-48.0	13
BGF-G2(BG48)	G2''	37-44	BG-48	59.6	59.6-60.1	14
美制螺牙BGF-N
BGF-NPT3/8（BG10）	NPT3/8''	4-8	BG-10	16.5	16.5-17.1	7
BGF-NPT1/2（BG12）	NPT1/2''	8-12	BG-12	21.3	21.0-21.3	8
BGF-NPT1/2（BG15）	NPT1/2''	8-12	BG-15	21.3	21.0-21.3	8
BGF-NPT1/2（BG17）	NPT1/2''	8-12	BG-17	21.3	21.0-21.3	8
BGF-NPT3/4（BG17）	NPT3/4''	13-18	BG-17	26.6	26.5-26.6	11
BGF-NPT3/4（BG23）	NPT3/4''	13-18	BG-23	26.6	26.5-26.6	11
BGF-NPT1（BG29）	NPT1''	15-22	BG-29	33.4	33.2-33.4	11
