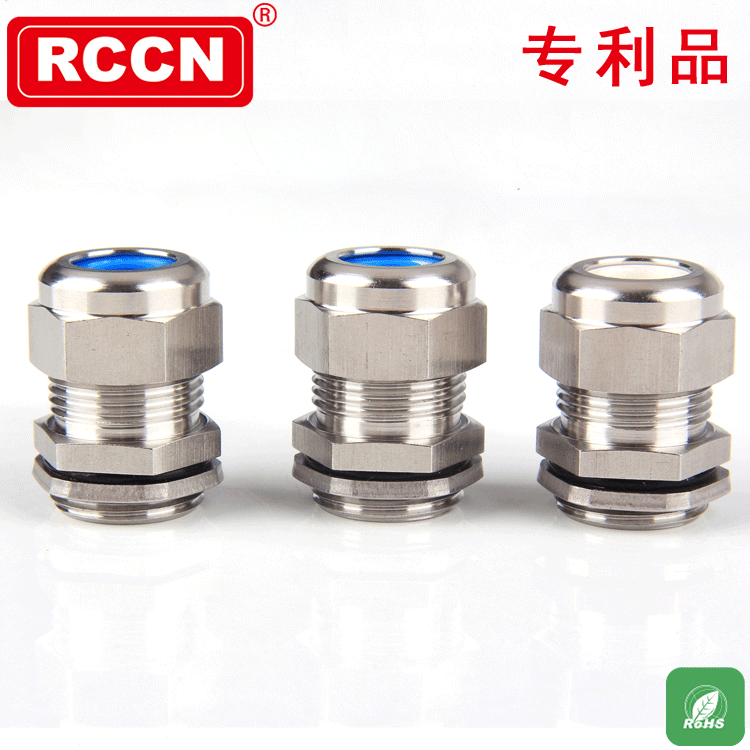

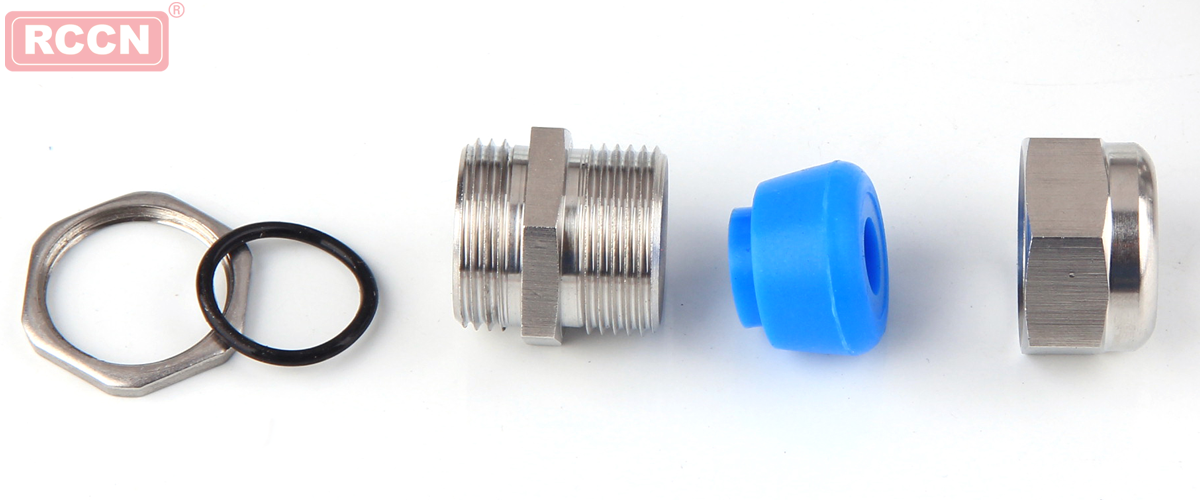

不锈钢接头,金属接头,电缆防水接头 - RCCN 上海日成有限公司

型号Item No.	适用电缆 CaBLSe Range Φ	内层橡胶 with inlet E1	外层橡胶 without inlet E2	螺纹长度 Thread Length L1	配套螺母上限板厚 +Nut Max platethick	接合长度 Joint Length H	板手 Spanner SW A/F	包装 Std.Pkg. pcs
公制螺纹 M
BLS-M10×1.0-6	1.5-6.0	1.5-3	3-6	7	≤3.5	20	14	100PCS
BLS-M12×1.5-8	2-8	2-5	5-8	7	≤3.5	121	18
BLS-M16×1.5-11	4-11	4-7	7-11	7	≤3.5	25	20
BLS-M18×1.5-11	4-11	4-7	7-11	7	≤3.5	25	22
BLS-M20×1.5-14	5-14	5-9	9-14	8	≤4.5	29	24
BLS-M22×1.5-14	5-14	5-9	9-14	8	≤4.5	29	26
BLS-M24×1.5-20	11-20	11-16	16-20	9	≤4.5	30	30
BLS-M25×1.5-20	11-20	11-16	16-20	9	≤4.5	30	30
BLS-M27×1.5-20	11-20	11-16	16-20	9	≤4.5	30	30	50PCS
BLS-M30×2.0-25	15-25	15-20	20-25	11	≤5.5	32	36
BLS-M32×1.5-25	15-25	15-20	20-25	11	≤5.5	32	36
BLS-M33×2.0-25	15-25	15-20	20-25	11	≤5.5	32	36
BLS-M36×2.0-25	15-25	15-20	20-25	11	≤5.5	32	40	5PCS
BLS-M40×1.5-32	20-32	20-26	26-32	11	≤5.5	35	44
BLS-M50×1.5-42	31-42	31-35	35-42	11	≤5.5	39	58
BLS-M63×1.5-54	41-54	41-54	46-54	14	≤8.5	40	68
BLS-M72×2.0-65	54-65	54-58	58-65	15	≤9.5	47	81	1PCS
BLS-M75×1.5-65	54-65	54-58	58-65	15	≤9.5	47	81
BLS-M85×1.5-77	65-77	65-70	70-77	15	≤9.5	49	96
BLS-M90×1.5-77	65-77	65-70	70-77	15	≤9.5	49	96
BLS-M100×1.5-89	77-89	77-81	81-89	20	≤13.5	50	110
BLS-M110×1.5-101	89-98	89-93	93-98	20	≤13.5	59	130
BLS-M120×1.5-113	101-110	101-106	106-110	20	≤13.5	59	130
BLS-M125×1.5-113	101-110	101-106	106-110	20	≤13.5	59	130
德制螺纹 PG
BLS-PG7-8	2-8	2-5	5-8	7	≤3.5	121	18	100PCS
BLS-PG9-11	4-11	4-7	7-11	7	≤3.5	25	20
BLS-PG11-11	4-11	4-7	7-11	7	≤3.5	25	22
BLS-PG13.5-14	5-14	5-9	9-14	8	≤4.5	29	24
BLS-PG16-14	5-14	5-9	9-14	8	≤4.5	29	26
BLS-PG21-20	11-20	11-16	16-20	9	≤4.5	30	30
BLS-PG29-32	20-32	20-26	26-32	11	≤5.5	35	44	50PCS
BLS-PG36-42	31-42	31-35	35-42	11	≤5.5	39	58
BLS-PG42-42	31-42	31-35	35-42	11	≤5.5	39	58
BLS-PG48-54	41-54	41-54	46-54	14	≤8.5	40	68
美制螺纹 NPT
BLS-NPT1/4-8	2-8	2-5	5-8	7	≤3.5	21	18	100PCS
BLS-NPT3/8-11	4-11	4-7	7-11	7	≤3.5	25	22
BLS-NPT1/2-14	5-14	5-9	9-14	8	≤4.5	29	24
BLS-NPT3/4-20	11-20	11-16	16-20	9	≤4.5	30	30
BLS-NPT1-25	15-25	15-20	20-25	11	≤5.5	32	36	50PCS
BLS-NPT1-1/4-32	20-32	20-26	26-32	11	≤5.5	35	44	5PCS
BLS-NPT1-1/2-42	31-42	31-35	35-42	11	≤5.5	39	58
BLS-NPT2-54	41-54	41-54	46-54	14	≤8.5	40	68
BLS-NPT2-1/2-65	54-65	54-58	58-65	15	≤9.5	47	81	1PCS
BLS-NPT3-77	65-77	65-70	70-77	15	≤9.5	49	96
BLS-NPT3-1/2-89	77-89	77-81	81-89	20	≤13.5	50	110
BLS-NPT4-101	89-101	89-94	94-101	20	≤13.5	59	125
英制螺纹 G
BLS-NPT1/4-8	2-8	2-5	5-8	7	≤3.5	21	18	100PCS
BLS-G3/8-11	4-11	4-7	7-11	7	≤3.5	25	22
BLS-G1/2-14	5-14	5-9	9-14	8	≤4.5	29	24
BLS-G3/4-20	11-20	11-16	16-20	9	≤4.5	30	30
BLS-G1-25	15-25	15-20	20-25	11	≤5.5	32	36	50PCS
BLS-G1-1/4-32	20-32	20-26	26-32	11	≤5.5	35	44	5PCS
BLS-G1-1/2-42	31-42	31-35	35-42	11	≤5.5	39	58
BLS-G2-54	41-54	41-54	46-54	14	≤8.5	40	68
BLS-G2-1/2-65	54-65	54-58	58-65	15	≤9.5	47	81	1PCS
BLS-G3-77	65-77	65-70	70-77	15	≤9.5	49	96
BLS-G3-1/2-89	77-89	77-81	81-89	20	≤13.5	50	110
