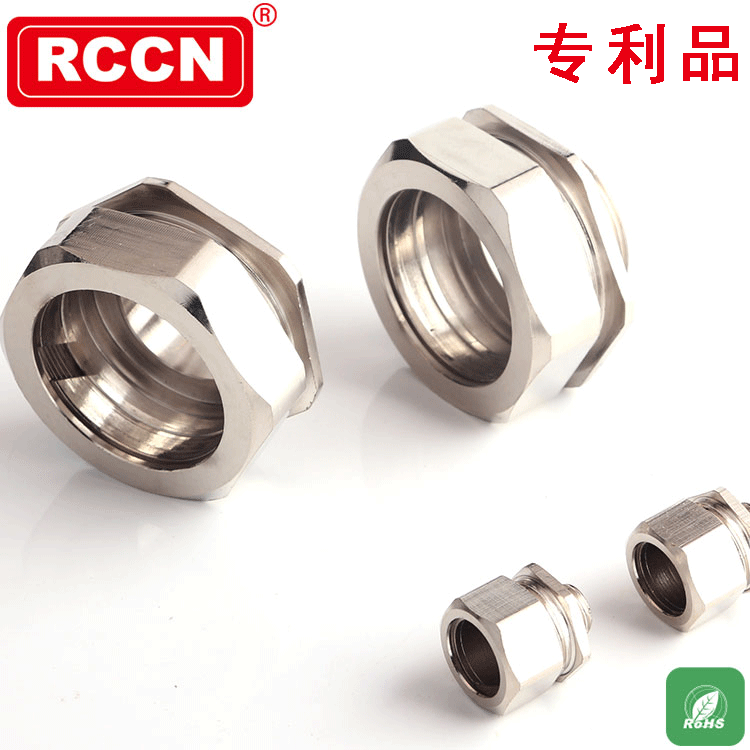

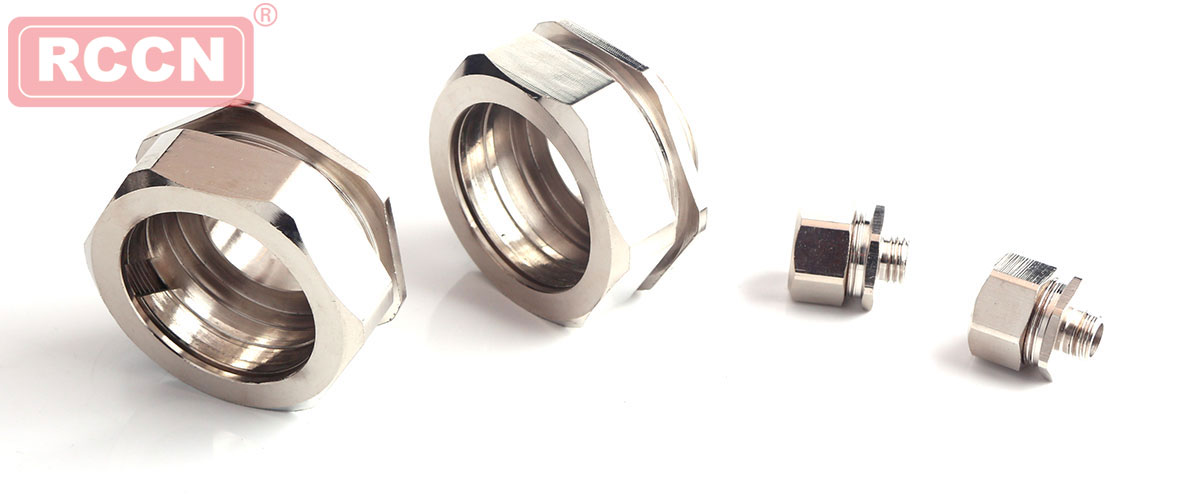

金属电缆接头,电缆防水接头

产品材质：黄铜镀镍

螺纹标准及开孔数据参考A26页

软管腺由黄铜制成，安装平管，高应变消除

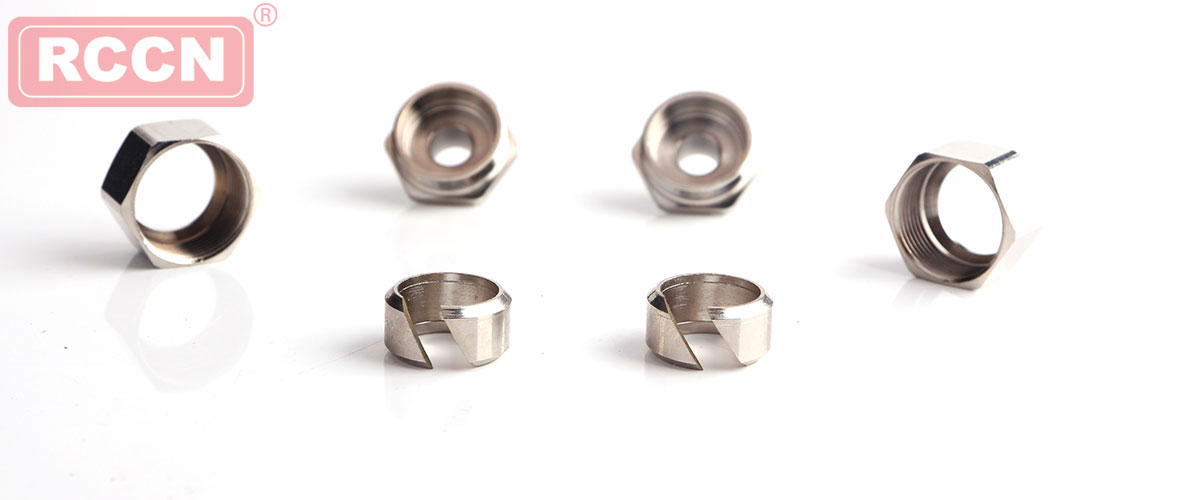

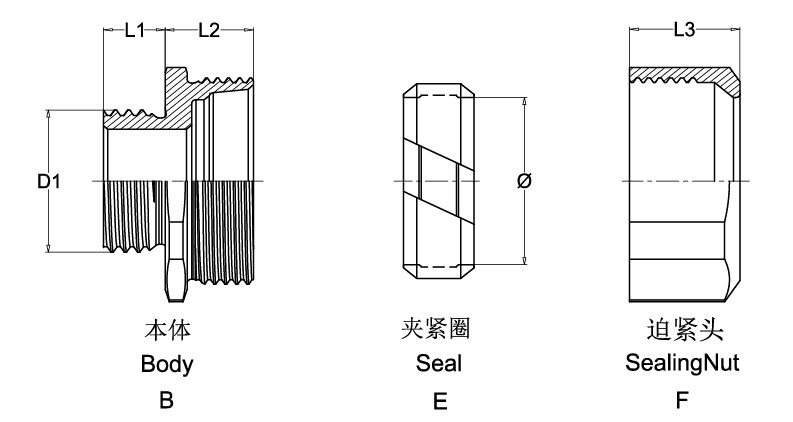

黄铜夹紧环和黄铜制反压插座

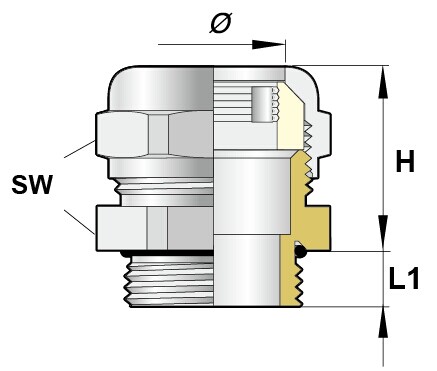

型号Item No.	螺纹长度 Thread Length L1	夹紧爪 hose clamps Φ	配套螺母上限板厚 +Nut Max platethick	接合长度 Joint Length H	板手 Spanner SW A/F	包装 Std.Pkg. pcs
公制螺纹 M
SVD-M12×1.5-12	6	10-12	≦2.5	20	18/18	100PCS
SVD-M16×1.5-15	7	13-15	≦3.5	21	20/20
SVD-M16×1.5-17	7	14-17	≦3.5	21	22/22
SVD-M18×1.5-15	7	13-15	≦3.5	21	20/20
SVD-M18×1.5-17	7	14-17	≦3.5	21	22/22
SVD-M18×1.5-18	7	15-18	≦3.5	21	24/24
SVD-M20×1.5-17	8	14-17	≦4.5	21	22/22
SVD-M20×1.5-18	8	15-18	≦4.5	21	24/24
SVD-M20×1.5-22	8	18-22	≦4.5	23	28/28	50PCS
SVD-M20×1.5-23	8	19-23	≦4.5	23	30/30
SVD-M22×1.5-23	8	19-23	≦4.5	24	30/30
SVD-M25×1.5-23	9	19-23	≦4.5	24	30/30	10PCS
SVD-M32×1.5-29	11	24-29	≦5.5	26	36/36
SVD-M36×2.0-32	11	28-32	≦5.5	26	40/40
SVD-M40×1.5-36	11	31-36	≦5.5	26	44/44
SVD-M40×1.5-40	11	34-40	≦5.5	27	50/50
SVD-M50×1.5-46	11	40-46	≦5.5	29	58/58
SVD-M63×1.5-56	14	50-56	≦9	30	68/68
德制螺纹 PG
SVD-PG7-12	6	10-12	≦2.5	20	18/18	100PCS
SVD-PG9-15	7	13-15	≦3.5	21	20/20
SVD-PG9-17	7	14-17	≦3.5	21	22/22
SVD-PG11-15	7	13-15	≦3.5	21	20/20
SVD-PG11-17	7	14-17	≦3.5	21	22/22
SVD-PG11-18	7	15-18	≦3.5	21	24/24
SVD-PG13.5-17	8	14-17	≦4.5	21	22/22
SVD-PG13.5-18	8	15-18	≦4.5	21	24/24
SVD-PG13.5-22	8	18-22	≦4.5	23	28/28	50PCS
SVD-PG13.5-23	8	19-23	≦4.5	23	30/30
SVD-PG16-23	8	19-23	≦4.5	24	30/30
SVD-PG21-23	9	19-23	≦4.5	24	30/30	10PCS
SVD-PG21-29	11	24-29	≦5.5	26	36/36
SVD-PG21-32	11	28-32	≦5.5	26	40/40
SVD-PG29-36	11	31-36	≦5.5	26	44/44
SVD-PG29-40	11	34-40	≦5.5	27	50/50
SVD-PG36-46	11	40-46	≦5.5	29	58/58
SVD-PG48-56	14	50-56	≦9	30	68/68
美制螺纹 NPT
SVD-NPT1/4-12	6	10-12	≦2.5	20	18/18	100PCS
SVD-NPT3/8-15	7	13-15	≦3.5	21	20/20
SVD-NPT3/8-17	7	14-17	≦3.5	21	22/22
SVD-NPT1/2-17	8	14-17	≦4.5	21	22/22
SVD-NPT1/2-18	8	15-18	≦4.5	21	24/24
SVD-NPT1/2-22	8	18-22	≦4.5	23	28/28	50PCS
SVD-NPT1/2-23	8	19-23	≦4.5	23	30/30	50PCS
SVD-NPT3/4-23	9	19-23	≦4.5	24	30/30	10PCS
SVD-NPT1-29	11	24-29	≦5.5	26	36/36
SVD-NPT1-1/4-36	11	31-36	≦5.5	26	44/44
SVD-NPT1-1/4-40	11	34-40	≦5.5	27	50/50
SVD-NPT1-1/2-46	11	40-46	≦5.5	29	58/58
SVD-NPT2-56	14	50-56	≦9	30	68/68
英制螺纹 G
SVD-G1/4-12	6	10-12	≦2.5	20	18/18	100PCS
SVD-G3/8-15	7	13-15	≦3.5	21	20/20
SVD-G3/8-17	7	14-17	≦3.5	21	22/22
SVD-G1/2-17	8	14-17	≦4.5	21	22/22
SVD-G1/2-18	8	15-18	≦4.5	21	24/24
SVD-G1/2-22	8	18-22	≦4.5	23	28/28	50PCS
SVD-G1/2-23	8	19-23	≦4.5	23	30/30	50PCS
SVD-G3/4-23	9	19-23	≦4.5	24	30/30	10PCS
SVD-G1-29	11	24-29	≦5.5	26	36/36
SVD-G1-1/4-36	11	31-36	≦5.5	26	44/44
SVD-G1-1/4-40	11	34-40	≦5.5	27	50/50
SVD-G1-1/2-46	11	40-46	≦5.5	29	58/58
SVD-G2-56	14	50-56	≦9	30	68/68
