金属软管接头,软管接头

螺牙规格:管螺纹G/PF牙,公制螺纹Metric,德制螺纹PG

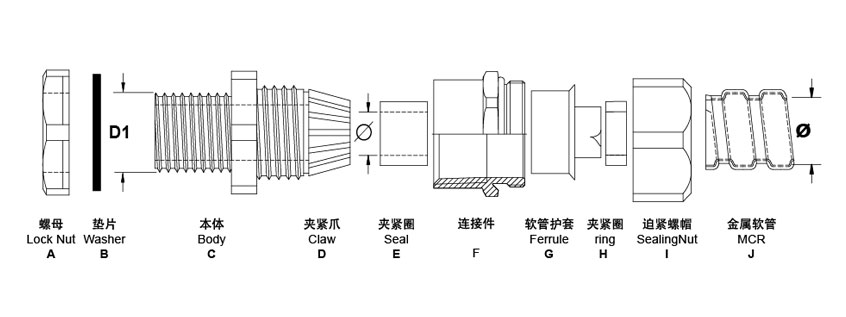

产品材质:A.C.F I部位均采用锌合金材质.
B.E.H采用丁腈橡胶(NBR) 制成.G为铁皮制成.
产品认证:欧洲CE,欧洲环保RoHS
颜色种类:金属色
防护等级:IP67, 如需IP68需配套日成含胶管SCM二次保护接头.
工作温度:-40°C至100°C,瞬间可耐热达120°C.
产品特性: 1.外型美观,结构紧密,强度更高.
2.软管护套设计与软管相扣接紧之设计,配合迫紧头装配省时便利,抗拉力特强,
3.可防水、防尘、抗盐、耐酸碱、酒精、油、脂及一般溶剂.
4.除以下标准规格外,可另按需求任意变动大小及螺纹标准.
备注:成品均配带螺母A及防水垫片B,可定制特殊规格不同的螺纹和配套和管.

型号 Item No.	螺牙标准 Thread G/M/PG	适用电缆	配套日成金属软管MCR Suitable RCCN metal flexible conduit MCR			螺纹外径 Thread O.D. D1	螺纹长度 Thread Length L1
型号 Item No.	螺牙标准 Thread G/M/PG	适用电缆	对应型号 Corresponding item no	公制 Metric ø	英制 British	螺纹外径 Thread O.D. D1	螺纹长度 Thread Length L1
公制螺牙/Metric thread NBL-M
NBL-03M	M16*1.5	6-10	MCR-03	10	1/4	M16*1.5	8
NBL-04M	M16*1.5	6-10	MCR-04	13	3/8"	M16*1.5	11
NBL-05M	M20*1.5	8-12	MCR-05	16	1/2"	M20*1.5	11
NBL-06M	M25*1.5	10-14	MCR-06	20	3/4"	M25*1.5	14
NBL-08M	M32*1.5	15-22	MCR-08	25	1"	M32*1.5	15
NBL-10M	M40*1.5	18-25	MCR-10	32	11/4"	M40*1.5	15
NBL-12M	M50*1.5	26-32	MCR-12	38	1 1/2	M50*1.5	16
NBL-16M	M63*1.5	37-44	MCR-16	51	2"	M63*1.5	18
NBL-20M	M76*2	42-52	MCR-20	64	2 1/2"	M76*2	22
NBL-24M	M88*2	55-62	MCR-24	80	3"	M88*2	22
NBL-32M	M114*2	78-84	MCR-32	100	4"	M114*2	24
德制螺纹/Metric thread NBL-P
NBL-03P	PG9	4-8	MCR-03	10	1/4"	15.2	8
NBL-04P	PG11	6-10	MCR-04	13	3/8"	18.6	9
NBL-05P	PG13.5	8-12	MCR-05	16	1/2"	20.4	11
NBL-06P	PG21	13-18	MCR-06	20	3/4"	28.3	14
NBL-08P	PG29	18-25	MCR-08	25	1"	37.0	15
NBL-10P	PG29	18-25	MCR-10	32	1 1/4"	37.0	15
NBL-12P	PG36	26-32	MCR-12	38	11/2"	47.0	16
NBL-16P	PG48	37-44	MCR-16	51	2"	59.3	18
管螺纹/Tube thread NBL-G
NBL-03G	G3/8"	4-8	MCR-03	10	1/4"	16.5	8
NBL-04G	G3/8"	6-10	MCR-04	13	3/8"	16.5	8
NBL-05G	G1/2"	8-12	MCR-05	16	1/2"	21.3	11
NBL-06G	G3/4"	13-18	MCR-06	20	3/4"	26.6	14
NBL-08G	G1"	15-22	MCR-08	25	1"	33.4	15
NBL-10G	G1 1/4"	22-28	MCR-10	32	11/4"	42.1	15
NBL-12G	G1 1/2"	26-32	MCR-12	38	11/2"	47.8	16
NBL-16G	G2"	37-44	MCR-16	51	2	59.6	18
