冷压端子,冷压端头,铜管端子,日成端子,线鼻子

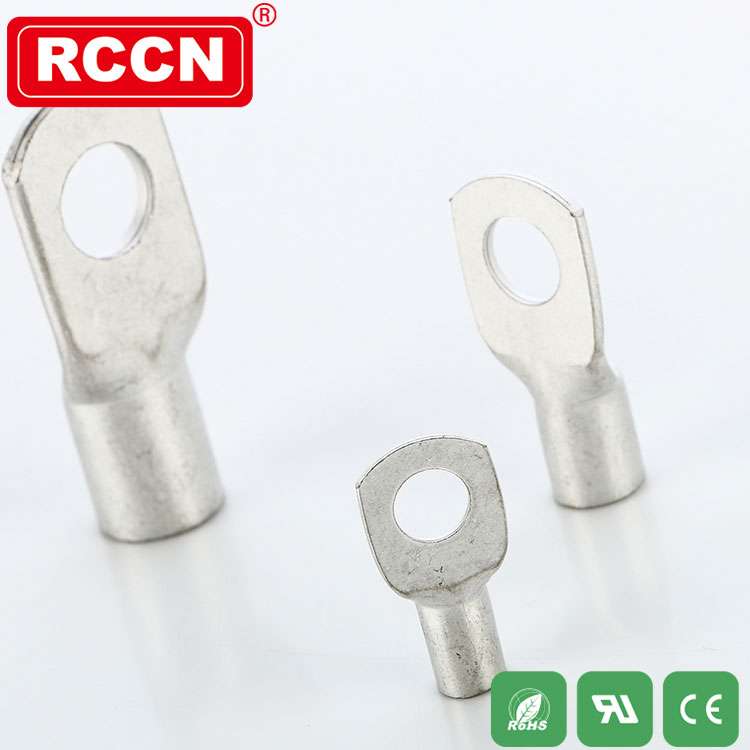

冷压端子,铜管端子,日成端子

产品材质:接线端子采用优质紫铜制成,导电性良好
产品特点:采用优质亚光电镀,防锈时间大大加长,无锋利部位；配套日成端子钳即可压紧电线,接线美观,
国际认证:欧盟RoHS环保认证,欧洲CE认证.
产品特性:品质优良,压紧后不断裂松开,-40度耐热至150度正常使用.
使用方法:将电线剥开外皮,穿入端子后铜管

型号 Item No.	E	φD	φd	W	B	L
SC1.5-3	3.2	3.7	1.8	8	5	16
SC1.5-4	4.2	3.7	1.8	8	5	16
SC1.5-5	5.2	3.7	1.8	10	5	17
SC1.5-6	6.5	3.7	1.8	10	5	18
SC2.5-4	4.2	4	2.4	8	7	18
SC2.5-5	5.2	4	2.4	10	7	20
SC2.5-6	6.5	4	2.4	10	7	20
SC2.5-8	8.4	4	2.4	12.5	7	23
SC4-4	4.2	4.8	3.1	10	7	20
SC4-5	5.2	4.8	3.1	10	7	20
SC4-6	6.5	4.8	3.1	10	7	20
SC4-8	8.4	4.8	3.1	12.5	7	23
SC6-4	4.2	5.5	3.8	10	9	24
SC6-5	5.2	5.5	3.8	10	9	24
SC6-6	6.5	5.5	3.8	12	9	24
SC6-8	8.4	5.5	3.8	12.5	9	26
SC6-10	10.5	6.2	4	15	9	28
SC10-5	5.2	6.2	4.5	12	9	25
SC10-6	6.5	6.2	4.5	12	9	25
SC10-8	8.4	6.2	4.5	12.5	9	27
SC10-10	10.5	6.2	4.5	15	9	29
SC10-12	13	6.2	4.5	17	9	31
SC16-5	5.2	7.1	5.4	12	12	30
SC16-6	6.5	7.1	5.4	12	12	30
SC16-8	8.4	7.1	5.4	12.5	12	30
SC16-10	10.5	7.1	5.4	16	12	33
SC16-12	13	7.1	5.4	17	12	35
SC25-5	5.2	8.8	6.8	13	12	33
SC25-6	6.5	8.8	6.8	13	12	33
SC25-8	8.4	8.8	6.8	15	12	33
SC25-10	10.5	8.8	6.8	18	12	34
SC25-12	13	8.8	6.8	18	12	35
SC25-14	15	8.8	6.8	20	12	38
SC35-5	5.2	10.6	8.2	16	14	38
SC35-6	6.5	10.6	8.2	16	14	38
SC35-8	8.4	10.6	8.2	16	14	38
SC35-10	10.5	10.6	8.2	18	14	39
SC35-12	13	10.6	8.2	19	14	40.5
SC35-14	15	10.6	8.2	20	14	42
SC50-6	6.5	12.4	9.5	17.8	16	45
SC50-8	8.4	12.4	9.5	17.8	16	45
SC50-10	10.5	12.4	9.5	17.8	16	45
SC50-12	13	12.4	9.5	20	16	45
SC50-14	15	12.4	9.5	22	16	46
SC50-16	17	12.4	9.5	24	16	47
SC70-8	8.4	14.7	11.2	21	20	52
SC70-10	10.5	14.7	11.2	21	20	52
SC70-12	13	14.7	11.2	21	20	52
SC70-14	15	14.7	11.2	21	20	52
SC70-16	17	14.7	11.2	25	20	53
SC95-8	8.4	17.4	13.5	25	23	58
SC95-10	10.5	17.4	13.5	25	23	58
SC95-12	13	17.4	13.5	25	23	58
SC95-14	15	17.4	13.5	25	23	58
SC95-16	17	17.4	13.5	25	23	58
SC120-8	8.4	19.4	15	28	22	63
SC120-10	10.5	19.4	15	28	22	63
SC120-12	13	19.4	15	28	22	63
SC120-14	15	19.4	15	28	22	63
SC120-16	17	19.4	15	28	22	63
SC120-20	21	19.4	15	28	22	63
SC150-8	8.4	21.2	16.5	30.5	26	70
SC150-10	10.5	21.2	16.5	30.5	26	70
SC150-12	13	21.2	16.5	30.5	26	70
SC150-14	15	21.2	16.5	30.5	26	70
SC150-16	17	21.2	16.5	30.5	26	70
SC150-20	21	21.2	16.5	30.5	26	70
SC185-10	10.5	23.5	18.5	34	32	75
SC185-12	13	23.5	18.5	34	32	75
SC185-14	15	23.5	18.5	34	32	75
SC185-16	17	23.5	18.5	34	32	75
SC185-20	21	23.5	18.5	34	32	75
SC240-10	10.5	26.5	21	38.5	38	90
SC240-12	13	26.5	21	38.5	38	90
SC240-14	15	26.5	21	38.5	38	90
SC240-16	17	26.5	21	38.5	38	90
SC240-18	19	26.5	21	38.5	38	90
SC240-20	21	26.5	21	38.5	38	90
SC300-10	10.5	30	23.5	43	42	98
SC300-12	13	30	23.5	43	42	98
SC300-14	15	30	23.5	43	42	98
SC300-16	17	30	23.5	43	42	98
SC300-20	21	30	23.5	43	42	98
SC400-10	10.5	36.5	28.5	52	44	110
SC400-12	13	36.5	28.5	52	44	110
SC400-14	15	36.5	28.5	52	44	110
SC400-16	17	36.5	28.5	52	44	110
SC400-20	21	36.5	28.5	52	44	110
SC500-10	10.5	39	30	56	48	120
SC500-12	13	39	30	56	48	120
SC500-14	15	39	30	56	48	120
SC500-16	17	39	30	56	48	120
SC500-20	21	39	30	56	48	120
SC630-10	10.5	45	35	65	56	140
SC630-12	13	45	35	65	56	140
SC630-14	15	45	35	65	56	140
SC630-16	17	45	35	65	56	140
SC630-20	21	45	35	65	56	140
