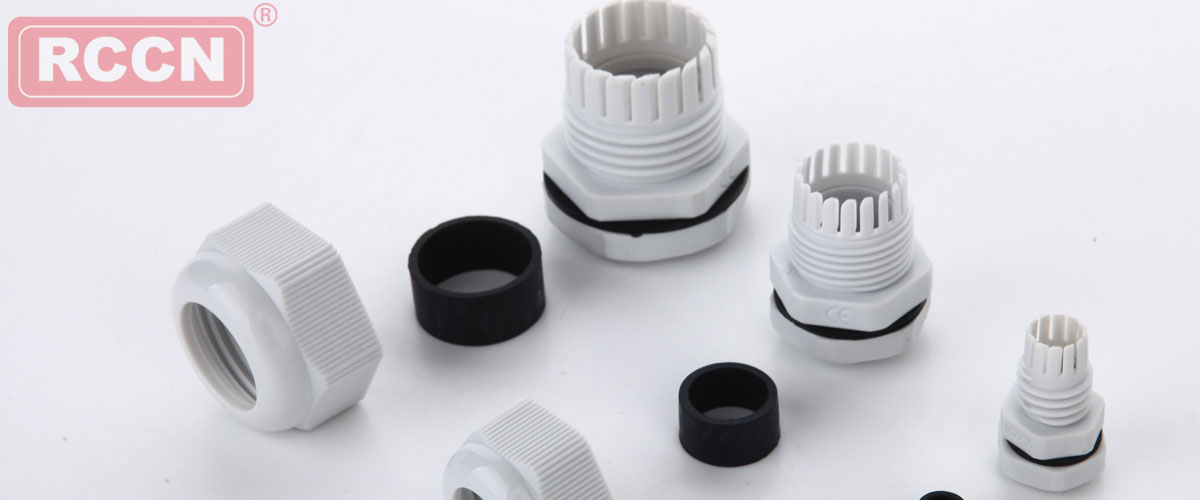

特点:公制电缆接头 M型热销

螺牙规格:公制螺牙(Metric/EN50262)。
产品材质:A.C.D.F部位均采用环保尼龙66原料制成.B耐老化硅橡胶制成.E采用耐油丁腈橡胶制成。
产品认证:欧洲CE 欧洲环保SGS,REACH。
防火等级:UL94V-2。
防护等级:在规定的卡口范围内,并使用防水垫片及夹紧圈旋紧迫紧头,达到IP68。
颜色种类:灰白色、黑色。
使用方法:先将本体穿于机板,再以螺母扭紧固定,线缆穿过迫紧头,扭紧迫紧头将其固定。
工作温度:静态-40°C至85°C。
产品特性:夹紧爪与夹紧圈一体成型之设计,配合迫紧头装配省时便利,夹紧电缆范围大,抗拉力强,可防水、防尘、抗盐、耐酸碱、酒精、油、脂及一般溶剂。应用于电缆出线端的固定保护及密封防尘水。
更多选择:另备多种范围夹紧圈,户外用时要求高的环境橡胶需通知更换为耐老化硅橡胶材质-AGH型。型号例：AG-12WH

型号 Item No.		螺牙规格 Thread	适用电缆外径 CableRange Φ	螺纹外径 Thread O.D. D1	机板开孔 Panel Mounting Hole	螺纹长度 Thread Length L1	接合长度 Joint Length L2+L3	板手 Spanner size A&F
灰白色 White	黑色 Black	螺牙规格 Thread	适用电缆外径 CableRange Φ	螺纹外径 Thread O.D. D1	机板开孔 Panel Mounting Hole	螺纹长度 Thread Length L1	接合长度 Joint Length L2+L3	板手 Spanner size A&F
短螺纹标准型standard
AG-12W	AG-12B	M12×1.5	3-6.5	12	12-12.3	8	22	17/16
AG-14W	AG-14B	M14×1.5	4-8	14	14-14.3	8	26	19/19
AG-16W	AG-16B	M16×1.5	4-8	16	16-16.3	8	26	22/19
AG-16DW	AG-16DB	M16×1.5	5-10	16	16-16.3	8	26	22/22
AG-18W	AG-18B	M18×1.5	5-10	18	18-18.3	8	27	24/22
AG-20W	AG-20B	M20×1.5	6-12	20	20-20.3	9	28	27/24
AG-20DW	AG-20DB	M20×1.5	10-14	20	20-20.3	10	28	27/27
AG-22W	AG-22B	M22×1.5	10-14	22	22-22.3	10	30	30/27
AG-24W	AG-24B	M24×1.5	12-15	24	24-24.4	10	30	30/27
AG-25SW	AG-25SB	M25×1.5	9-16	25	25-25.4	10	35	32/33
AG-25W	AG-25B	M25×1.5	13-18	25	25-25.4	10	35	32/33
AG-27W	AG-27B	M27×1.5	13-18	27	27-27.4	10	35	36/33
AG-30W	AG-30B	M30×1.5	16-21	30	30-30.4	11	35	37/36
AG-32W	AG-32B	M32×1.5	16-21	32	32-32.4	11	35	39/37
AG-32DW	AG-32DB	M32×1.5	18-25	32	32-32.4	12	40	39/42
AG-36W	AG-36B	M36×1.5	18-25	36	36-36.4	12	40	45-41/42
AG-40W	AG-40B	M40×1.5	22-32	40	40-40.4	14	48	50/53
AG-50W	AG-50B	M50×1.5	32-38	50	50-50.4	14	49	60/61
AG-63W	AG-63B	M63×1.5	37-44	63	63-63.4	14	50	74/67
AG-75W	AG-75B	M75×2.0	53-60	75	75-75.4	25	65	86/82
夹紧圈加厚型thickening
AG-10W	AG-10B	M10×1	3-6.5	12	12-12.3	8	22	15/15
AG-12SW	AG-12SB	M12×1.5	2-5	12	12-12.3	8	22	17/16
AG-14SW	AG-14SB	M14×1.5	2-6	14	14-14.3	8	26	19/19
AG-16SW	AG-16SB	M16×1.5	2-6	16	16-16.3	8	26	22/19
AG-18SW	AG-18SB	M18×1.5	3-7	18	18-18.3	8	27	24/22
AG-20SW	AG-20SB	M20×1.5	5-9	20	20-20.3	9	28	27/24
AG-22SW	AG-22SB	M22×1.5	7-12	22	22-22.3	10	30	30/27
AG-24SW	AG-24SB	M24×1.5	7-12	24	24-24.4	10	30	30/27
AG-25SW	AG-25SB	M25×1.5	9-16	25	25-25.4	10	35	35/33
AG-27SW	AG-27SB	M27×1.5	9-16	27	27-27.4	10	35	36/33
AG-30SW	AG-30SB	M30×1.5	7-15	30	30-30.4	11	35	37/36
AG-32W(7-15)	AG-32B(7-15)	M32×1.5	7-15	32	32-32.4	11	35	39/37
AG-32W(13-20)	AG-32B(13-20)	M32×1.5	18-25	32	32-32.4	12	40	39-41/42
AG-36SW	AG-36SB	M36×1.5	13-20	36	36-36.4	12	40	45-41/42
AG-40SW	AG-40SB	M40×1.5	20-26	40	40-40.4	14	48	50/53
AG-50SW	AG-50SB	M50×1.5	25-31	50	50-50.4	14	49	60/61
AG-63SW	AG-63SB	M63×1.5	29-35	63	63-63.4	14	50	74/67
AG-75SW	AG-75SB	M75×2.0	48-55	75	75-75.4	25	65	86-82

型号 Item No.		螺牙规格 Thread	适用电缆外径 CableRange ￠	螺纹外径 Thread O.D. D1	机板开孔 Panel Mounting Hole	螺纹长度 Thread Length L1	接合长度 Joint Length L2+L3	板手 Spanner size A&F
灰白色 White	黑色 Black	螺牙规格 Thread	适用电缆外径 CableRange ￠	螺纹外径 Thread O.D. D1	机板开孔 Panel Mounting Hole	螺纹长度 Thread Length L1	接合长度 Joint Length L2+L3	板手 Spanner size A&F
加长标准型
AG-12LW	AG-12LB	M12×1.5	3-6.5	12	12-12.3	15	22	17/16
AG-16LW	AG-16LB	M16×1.5	4-8	16	16-16.3	15	26	22/19
AG-16DLW	AG-16DLB	M16×1.5	5-10	16	16-16.3	15	26	22/22
AG-18LW	AG-18LB	M18×1.5	5-10	18	18-18.3	15	27	24/22
AG-20LW	AG-20LB	M20×1.5	6-12	20	20-20.3	15	28	27/24
AG-20DLW	AG-20DLB	M20×1.5	8-14	20	20-20.3	15	28	27/27
AG-22LW	AG-22LB	M22×1.5	10-14	22	22-22.3	15	30	30/27
AG-24LW	AG-24LB	M24×1.5	12-15	24	24-24.4	15	30	30/27
AG-25SLW	AG-25SLB	M25×1.5	9-16	25	25-25.4	15	35	32/33
AG-25LW	AG-25LB	M25×1.5	13-18	25	25-25.4	15	35	32/33
AG-32LDW	AG-32LDB	M32×1.5	18-25	32	32-32.4	16	35	41/42
AG-40LW	AG-40LB	M40×1.5	22-32	40	40-40.4	18	48	50/53
AG-50LW	AG-50LB	M50×1.5	32-38	50	50-50.4	20	49	60/61
AG-63LW	AG-63LB	M63×1.5	37-44	63	63-63.4	19	50	74/67
加长加厚型
AG-12SLW	AG-12SLB	M12×1.5	2-5	12	12-12.3	15	22	17/16
AG-14SLW	AG-14SLB	M14×1.5	2-6	14	14-14.3	15	26	19/19
AG-16SLW	AG-16SLB	M16×1.5	2-6	16	16-16.3	15	26	22/19
AG-18SLW	AG-18SLB	M18×1.5	3-7	18	18-18.3	15	27	24/22
AG-20SLW	AG-20SLB	M20×1.5	5-9	20	20-20.3	15	28	27/24
AG-22SLW	AG-22SLB	M22×1.5	7-12	22	22-22.3	15	30	30/27
AG-32LW(13-20)	AG-32LB(13-20)	M32×1.5	13-20	32	32-32.4	15	40	39/42
AG-40SLW(15-23)	AG-40SLB(15-23)	M40×1.5	15-23	40	40-40.4	18	48	50/46
AG-40SLW(19-28)	AG-40SLB(19-28)	M40×1.5	19-28	40	40-40.4	18	48	50/46
AG-40SLW	AG-40SLB	M40×1.5	20-26	40	40-40.4	18	48	50/53
AG-50SLW(27-35)	AG-50SLB(27-35)	M50×1.5	27-35	50	50-50.4	18	49	60/56
AG-50SLW(22-29)	AG-50SLB(22-29)	M50×1.5	22-29	50	50-50.4	18	49	60/56
AG-50SLW	AG-50SLB	M50×1.5	25-31	50	50-50.4	18	49	60/61
AG-63SLW	AG-63SLB	M63×1.5	29-35	63	63-63.4	19	50	74/67
AG-63DLW(34-45)	AG-63DLB(34-45)	M63×1.5	34-45	63	63-63.4	19	57	74/68
AG-63SLW(28-39)	AG-63SLB(28-39)	M63×1.5	28-39	63	63-63.4	19	57	74/68
